Fresh Food Traceability Solution — RFID Hardware for Retail Environments
Jul 10, 2026The Challenge
Fresh food retail demands continuous visibility across receiving, cold storage, sales floor, and checkout. Temperature fluctuations, metal interference, condensation, and high-density product arrangements create conditions where generic RFID hardware fails.
The Solution
SeeMore IoT provides a purpose-built hardware ecosystem for fresh food traceability, anchored by the Symo Series split-type readers and TL Series retail labels — engineered for real-world retail conditions.
Symo FR34A/FR38A — Split-Type UHF RFID Reader
| Specification | Detail |
|---|---|
| RFID Chip | Impinj E710 (E510 optional) |
| Air Protocol | EPC Global Class 1 Gen 2 / Gen2x, ISO/IEC 18000-6C |
| Frequency Range | FCC / ETSI / CMIIT — configurable |
| Output Power | 5dBm to 33dBm (±1dB) |
| Read Rate | >1,000 tags per second |
| Read Distance | Up to 30 meters |
| Antenna Ports | 4 or 8 x RP-TNC Female |
| Interfaces | RS232, RS485, Ethernet, GPIO, Wiegand |
| Operating Temperature | -25°C to 70°C |
https://www.seemoreiot.com/category/rfid-e-tag
Why It Works for Fresh Food Retail
Multi-port flexibility — 4 or 8 antenna ports enable customized coverage zones for metal-rich store layouts
Wide temperature tolerance — stable operation from -25°C to 70°C
Global compliance — FCC, ETSI, and CMIIT certified
Edge intelligence — on-device filtering reduces cloud dependency and network load
Open integration — C#, Java, C/C++ APIs with SDK support
Retail UHF RFID Label
| Specification | Detail |
|---|---|
| Chip | Impinj M830 |
| Protocol | ISO18000-6C |
| Frequency | 860-960MHz |
| EPC Memory | 128 Bits |
| TID | 96 bits with 48-bit serial number |
| Write Endurance | 1,000 cycles |
| Data Retention | 10 years |
| Packaging | 3,000 pcs per roll, 3-inch core |
Why It Works for Fresh Food
Proven chip platform — Impinj M830 delivers consistent read performance in high-density retail environments
Printable and encodable — supports on-site encoding at receiving
Moisture-resistant construction — designed for cold chain conditions
High-volume format — roll-fed for efficient application
https://www.seemoreiot.com/products
Deployment Architecture
| Zone | Equipment | Function |
|---|---|---|
| Receiving dock | FR34A/FR38A + outdoor antennas | Capture incoming pallets, encode batch/date data |

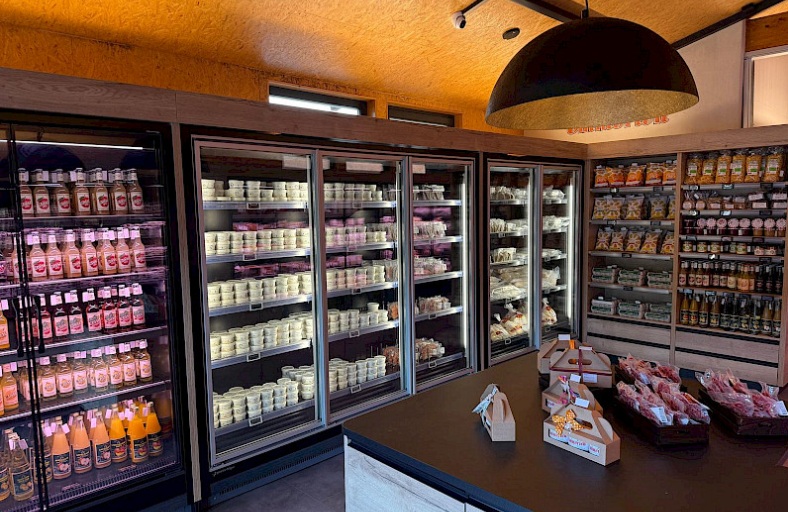

| Cold storage | Integrated readers with IP66/IP67 | Maintain read reliability in refrigerated environments |
| Sales floor | FR34A/FR38A + narrow-beam antennas | Zone-specific reads, reduce cross-aisle interference |

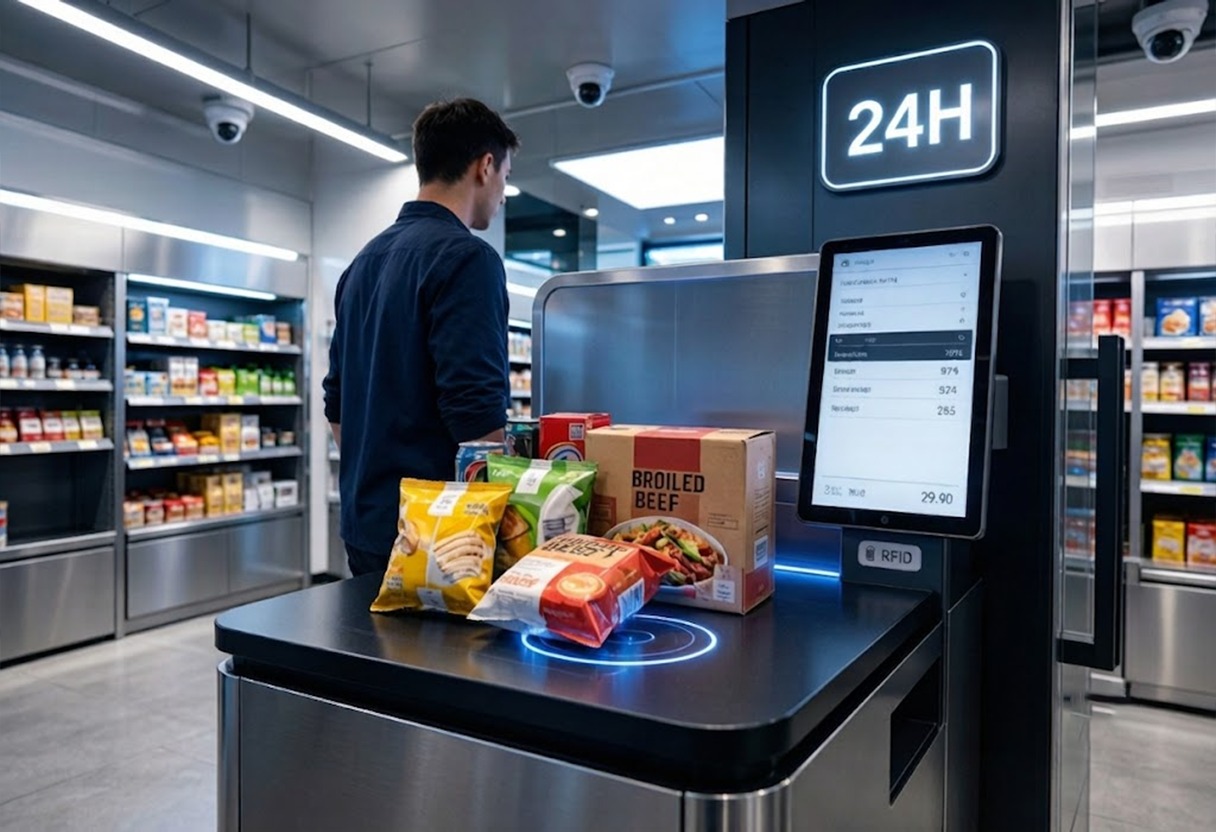

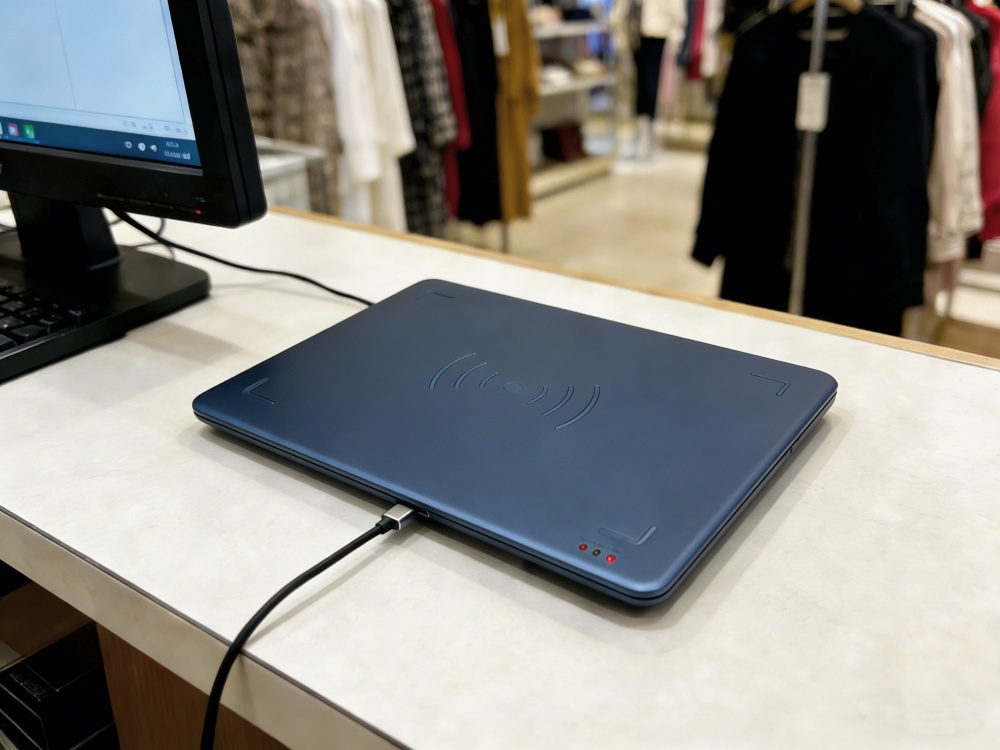

| Checkout | Desktop readers | Rapid contactless item identification |
| Mobile verification | Vita Series handheld terminals | Cycle counts, expiration audits, discrepancy checks |
Edge Intelligence
SeeMore IoT embeds intelligence at the device edge:
On-device data filtering — eliminates duplicate reads
Tag classification — distinguishes product types and batches
Anomaly detection — flags read patterns deviating from expected behavior
Business Outcomes
Inventory accuracy — automated reads replace manual counts
Waste reduction — real-time expiration tracking enables dynamic markdowns
Recall response — batch-level traceability reduces removal time to hours
Labor efficiency — staff focus on exception management, not scanning
Get Started
Free samples, encoding services, and solution consulting available.
