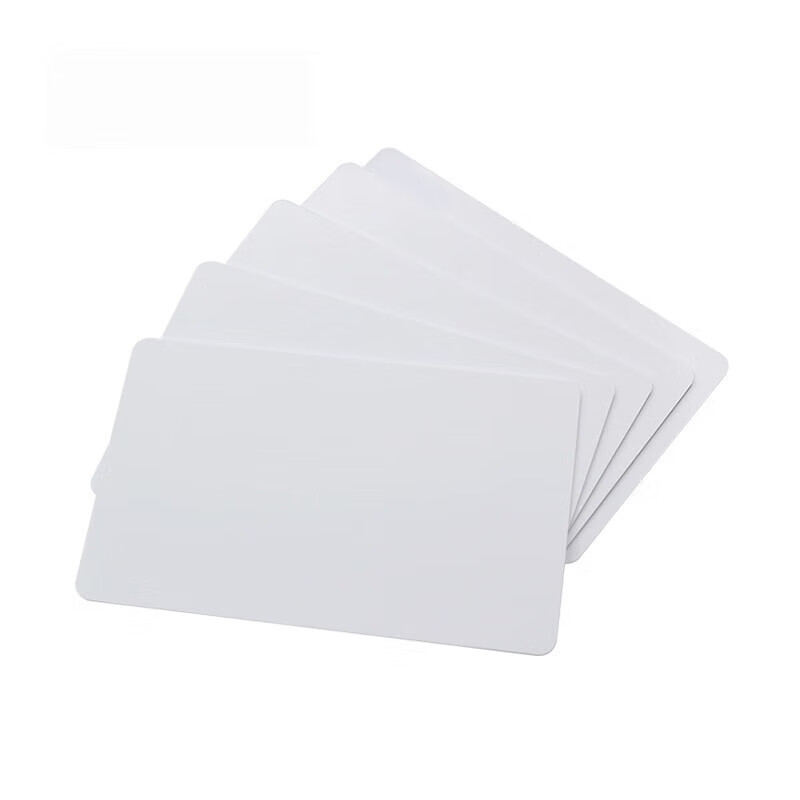

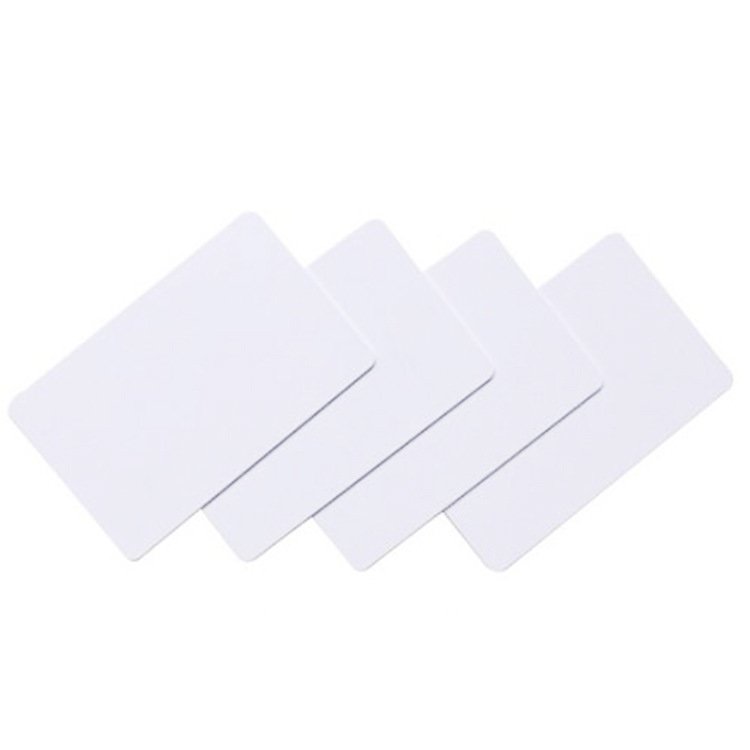

The TC8654 is a high-performance, industrial-grade UHF RFID card made from durable PVC. Designed for long-range tracking and harsh environments, it features Alien Higgs® H9 IC technology with extended user memory, making it ideal for access control, asset management, vehicle tracking, and event management. Its IP68 rating ensures reliability in outdoor and demanding conditions.
Access Control: Corporate offices, secure facilities, and gym memberships.
Vehicle Management: Parking permits, toll collection, and fleet tracking
Asset Tracking: IT equipment, laboratory tools, and warehouse inventory.
Event Management: Conference badges, attendee tracking, and cashless payments.
Industrial Logistics: Container identification and warehouse workflow automation.
Long Read Range: Optimized for 8–12 meters with fixed readers, ensuring reliable performance in large-scale deployments.
High Memory Capacity: 512-bit user memory supports extensive data storage for complex applications.
Durability: IP68-rated for dust/water resistance and operates across a wide temperature range (-40°C to +80°C).
Global Compliance: Supports global UHF frequencies (860–960 MHz) and complies with EPC Gen2 standards.
Customization: Supports pre-encoding, laser engraving, logo printing, and color customization.
| Parameter | Specification |
|---|---|
| RFID Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Chip Model | Alien Higgs® H9 |
| Memory | EPC: 96 bits, User: 512 bits |
| Frequency | 860–960 MHz (Global UHF) |
| Dimensions | 86 × 54 × 0.8 mm (Standard ID-1/CR80 size) |
| Material | PVC (optional ABS, PET) |
| Weight | ≈7.2 g |
| Operating Temperature | -40°C to +80°C |
| IP Rating | IP68 (Dust/Waterproof) |
| Read/Write Cycles | 100,000 times |
| Read Range | Fixed Reader: 8–12 m (4W EIRP) |
| Handheld: 5–8 m (30 dBm) | |
| Polarization | Linear Polarization |
| Testing Standard | 100% Voyantic Tested |
Standard Packaging: 200 cards/box, 10 boxes/master carton
Customization: Logo printing, sequential encoding, color options, QR/barcode printing
MOQ: 1000 pieces
